    NTN Bearing Units UCF Series Pillow block bearings UCF212D1NTN agricultural farming machinery bearing housing UCF212D1

    Ask Lasest Price
    Brand Name : OEM
    Model Number : UCF212D1
    Certification : ISO
    Price : negotiation
    Payment Terms : T/T or western Union or PayPal
    Supply Ability : 3,000pcs per month
    Delivery Time : 3 working days after received your payment
    • Product Details
    • Company Profile

    NTN Bearing Units UCF Series Pillow block bearings UCF212D1NTN agricultural farming machinery bearing housing UCF212D1

    NTN Bearing Units UCF Series Pillow block bearings UCF212D1UCF212D1 Square flanged units cast housing UCF212


    The Brief Description of Pillow Bearings:

    Pillow block bearing unit is combination of an insert bearing, seal and a housing.The internal structure of the insert ball bearing is the same with that of deep groove ball bearing. But the inner race of this bearing is wider than the outer race. The outer race has the spherical surface. Insert ball bearings can self aligning with the fit between the outer race and the bearing block. Insert ball bearings are compact. It’s easy for loading and unloading.Pillow block bearings are widely used in mining, machinery, automotive, textile and chenmical industries.


    We can supply UCP, NAP, UKP, SBPP, SAPP,NAF, NAFU,UCF, UCFL, NAFL, NAFL, UCFC, NAFC, SBPF, UCT, NAT, UCC, UCFB, UCFA, UCPH, UCFX series pillow block bearing units.

    Square UCF Series Pillow block bearings UCF212D1:

    ModelShalft dia.WeightBearing typeHousing type
    UCF212D160 mm4.28 kgUC212D1
    F212

    ModelA(mm)L(mm)d(mm)Weight(KG)
    UCF20125.586120.7
    UCF20225.586150.7
    UCF20325.586170.6
    UCF20425.586200.6
    UCF2052795250.8
    UCF20631108301
    UCF20734117351.4
    UCF20836130401.8
    UCF20938137452.2
    UCF21040143502.4
    UCF21143162553.6
    UCF21248175604.4
    UCF21350187655.5
    UCF21454193706.1
    UCF21556200756.9
    UCF21658208808.1
    UCF21763220859.3
    UCF218682359011
    UCF30529110251.1
    UCF30632125301.6
    UCF30736135352
    UCF30840150402.7
    UCF30944160453.4
    UCF31048175504.5
    UCF31152185555.5
    UCF31256195606.5
    UCF31358208657.9
    UCF31461226709.5
    UCF315662367512
    UCF316682508014
    UCF317742608516
    UCF318762809019
    UCF319942909522
    UCF3209431010026
    UCF3219431010527
    UCF3229634011038
    UCF32411037012050
    UCF32611541013066
    UCF32812545014090

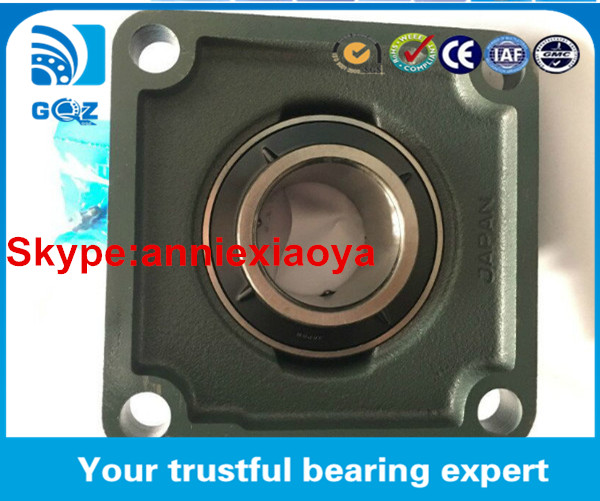

    Bearing unit UCF Series Pillow block bearings UCF212D1 pictures:

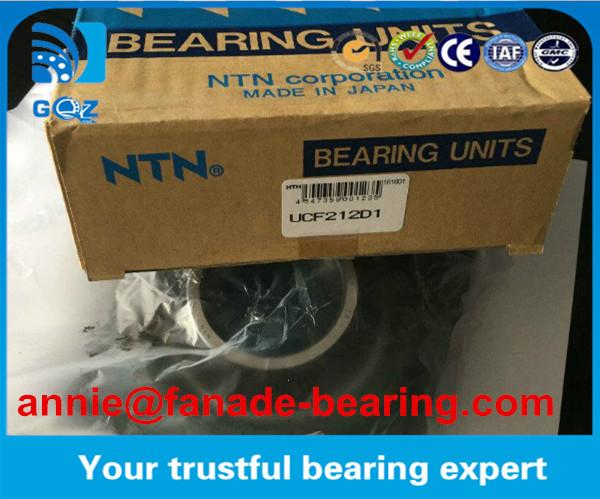

    Bearings Package of NTN UCF Series Pillow block bearings UCF212D1:

    Original Package:

    1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);

    2):Small sizes:Plastic Tube + Carton

    3):Big sizes:Wooden Case


    Bearings Lead time of NTN UCF Series Pillow block bearings UCF212D1:

    We will prepare your order as soon as possible.

    1)2-3 days for ex-stock

    2)6-10 days for others


    Shipping & Delivery time of NTN UCF Series Pillow block bearings UCF212D1:

    1)Less than 45 Kg:DHL TNT Fedex UPS express will be better,( 4-7 days delivered to your address);

    2) Between 45 to 200 Kg:Air transiportation will be better,( 5-14 days delivered to your airport);

    3) Over 200 Kg:Sea transportation will be better.( Cheapest,18-45 days to your port ).
