UCF218 pillow block bearing used on Conveyor belt machine stainless
steel pillow block bearing UCF218 F218
The Brief Description of Pillow Bearings:
Pillow block bearing unit is combination of an insert bearing, seal and a housing.The
internal structure of the insert ball bearing is the same with that
of deep groove ball bearing. But the inner race of this bearing is
wider than the outer race. The outer race has the spherical
surface. Insert ball bearings can self aligning with the fit
between the outer race and the bearing block. Insert ball bearings
are compact. It’s easy for loading and unloading.Pillow block
bearings are widely used in mining, machinery, automotive, textile
and chenmical industries.
We can supply UCP, NAP, UKP, SBPP, SAPP,NAF, NAFU,UCF, UCFL, NAFL,
NAFL, UCFC, NAFC, SBPF, UCT, NAT, UCC, UCFB, UCFA, UCPH, UCFX
series pillow block bearing units.
Square Heavy Duty Pillow Block Bearing UCF218 :
| Model | Shalft dia. | Weight | Bearing type | Housing type |
| UCF218 | 90 mm | 12.06 kg | UC218 | F218 |
| Molde | ball bearing units series in Metric & Inch size |
| Brand | OEM |
| Type | ball bearing units |
| Material | chrome steel, stainless steel |
| Cage material | iron |
| Clearance | C0 C1 C2 C3 |
| Vibration | Z1V1 Z2V2 Z3V3 |
| Precison rating | P0 P2 P5 P6 |
| Grease | No.2 lithium Grease |
| Number of Row | Single row |
| Gurantee | one year |
| Application | Agriculture,textile,mining,chemical food,transport machinery |
| Certification | ISO9001:2008 |
| Place of Orgin | Jinan, China |
| MOQ | 100 pcs |
Service
| - Prompt delivery;
- OEM;
- Good after-sales service offered.
|
| Payment terms | 30% paid in advance,balance after the copy of B/L |
| Port | Qingdao Shanghai Guangzhou Shenzhen |
| Details | fast delivery,competitive price,and high quality |
Bearing characteristics of pillow block bearing UC218
This typical type of bearing unit is equivalent to the combination
of a widely used plumber block and an automatic self-aligning
bearing. Fitting to a shaft can be done easily, simply by fastening
ball-point set screws. This type is most widely used in
transmission mechanisms, general machinery and similar.
| Pillow blocks |
| UC(UK)(HC)(SA)(SB)P/PH/PH/PW/PG/LLP etc. | 201-218, X05-X20, 305-328 |
| Square flange units |
| UC(UK)(HC)(SA)(SB)F/FS etc. | 201-218, X05-X20, 305-328 |
| Oval flange units |
| UC(UK)(HC)(SA)(SB)FL/LF/FD/FT etc. | 201-218, X05-X20, 305-328 |
| Flange cartridge units |
| UC(UK)(HC)FC etc. | 201-218, X05-X20 |
| Square Flange cartridge units |
| UC(HC)(UK)FS etc. | 305-328 |
| Take-up units |
| UC(UK)HCT etc. | 201-218, X05-X20, 305-328 |
| Cartridge units |
| UC(UK)C/FA/FB/HA etc. | 201-218, X05-X20, 305-328 |
| Ductile iron bearing units |
| SA(SB)FTD/FCT etc. | 201-207 |
| Pressed housing bearing units |
| SA(SB)PP/PF/PFL/PFT etc. | 201-206 |
| Thermoplastic housing bearing units |
| UCPPL/FPL/NFL/PL/TPL etc. | 201-210 |
| Insert bearings / spherical outside surface ball bearings |
| UC/UK/HC/CS /SER/SA(CSA)/SB(CSB)/GRA(RA) etc. | 201-218, X05-X20, 305-328 |
| Stainless steel bearing units |
| SSUCP/F/FL/T/PA/FC etc. | 201-220 |
| Zinc alloy blocks |
| K(U)P/FL etc. | 000-008 |

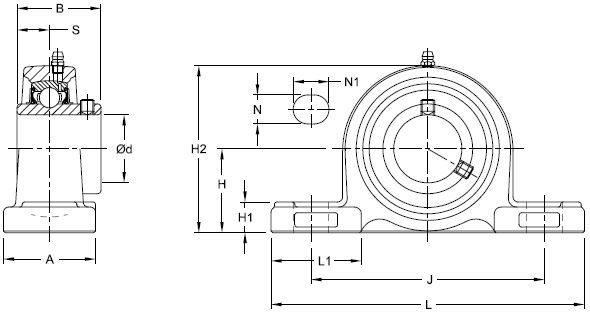

Product showing of pillow block bearing UC218
