The Brief Description of Pillow Block Insert Ball Bearing :
Pillow block bearing unit is combination of an insert bearing, seal and a housing.The
internal structure of the insert ball bearing is the same with that
of deep groove ball bearing. But the inner race of this bearing is
wider than the outer race. The outer race has the spherical
surface. Insert ball bearings can self aligning with the fit
between the outer race and the bearing block. Insert ball bearings
are compact. It’s easy for loading and unloading.Pillow block bearings are widely used in mining, machinery,
automotive, textile and chenmical industries.
We can supply UCP, NAP, UKP, SBPP, SAPP,NAF, NAFU,UCF, UCFL, NAFL, NAFL, UCFC,
NAFC, SBPF, UCT, NAT, UCC, UCFB, UCFA, UCPH, UCFX series pillow block bearing units.

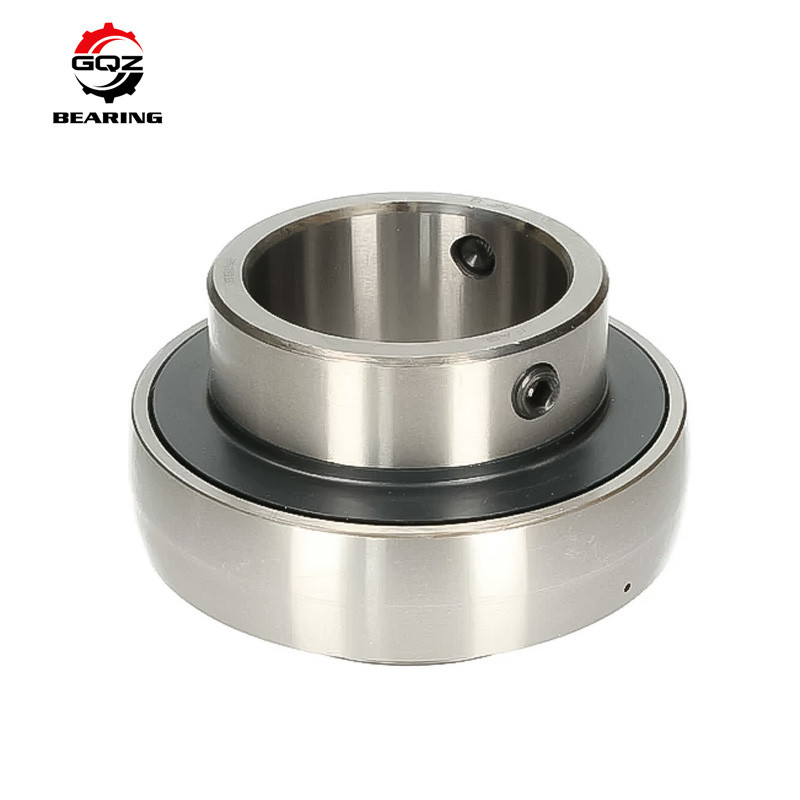

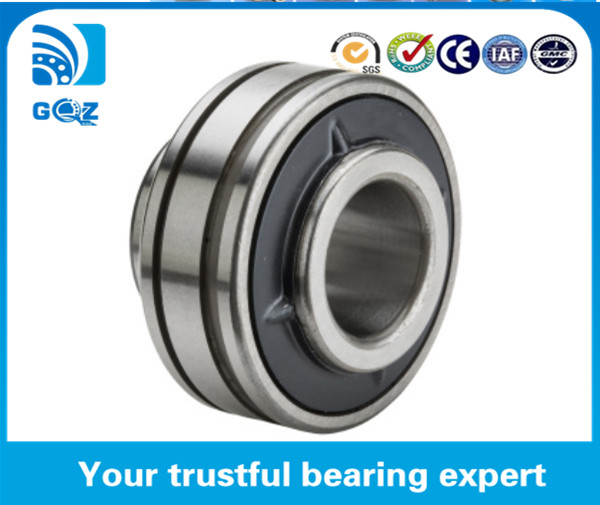

The details of NTN UCS204-012D1N Insert ball bearing:

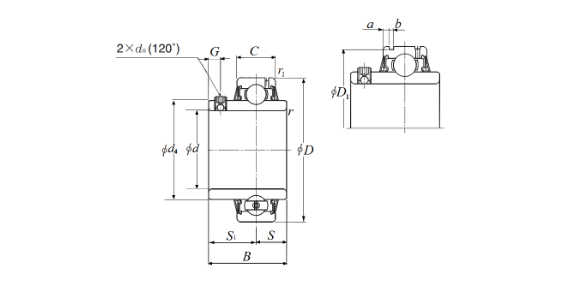

Dimensional Drawing |
Bearing Insert w/ Set Screw, Wide Inner Ring - Cylindrical O.D.,
Snap Ring Groove - Dimensions |
d | 0.7500 in19.050 mm |
D | 1.8504 in47.000 mm |
C | 0.6693 in17.000 mm |
B | 1.2205 in31.000 mm |
r | 0.0394 in1.000 mm |
r1 | 0.0236 in0.600 mm |
ds | 10-32 UNF |
G | 0.1772 in4.500 mm |
d4 | 1.1654 in29.600 mm |
S1 | 0.7205 in18.300 mm |
S | 0.5000 in12.700 mm |
a | 0.1220 in3.100 mm |
b | 0.0591 in1.500 mm |
D1 | 1.7559 in44.600 mm |
F | 0.1575 in4.000 mm |
Type | Insert Bearing |
Bore Type | Round |
Bearing Type | Ball Bearing |
Material | Through Hardened Steel |
Limiting Speed - Grease | 6700 RPM |
Seal Type | Contact |
Seal Material | Nitrile Rubber |
Precision Rating | Class 0 |
Performance | Standard Duty |
Locking Device | 2 -120° Set Screw |
Lubrication | Re-Lubricatable |
Radial Internal Clearance | CN |
Static Load Rating | 1500 lbf6650 N6.65 kN |
Dynamic Load Rating | 2880 lbf12800 N12.80 kN |
Enclosure | Double Sealed |
Operating Temperature Range | -40 to 250 ºF-40 to 120 ºC |
UC Series Pillow Block Bearings:
UC200 Series: UC201, UC202, UC203,UC204,UC205, UC206, UC207, UC208,
UC209, UC10, UC211, UC212, UC213, UC214, UC215, UC216, UC217,
UC208, UC209, UC210, UC211, UC212, UC213, UC214, UC215, UC216,
UC217, UC218
UC300 Series: UC305, UC306, UC307, UC308, UC309, UC310, UC311,
UC312, UC313, UC314, UC315, UC316, UC317, UC318, UC319, UC320,
UC321, UC322, UC324, UC326, UC328
UCF 200 Series: UCF204,UCF205,UCF206.UCF207,UCF208,UCF209,UCF210,
UCF211, UCF212, UCF213, UCF214, UCF215, UCF216, UCF217, UCF218
UCF 300 Series:UCF305,UCF306,UCF307UCF308,UCF309,UCF310,UCF311,
UCF312,UCF313,UCF314,UCF315,UCF316,UCF317,UCF318,UCF319,
UCF320, UCF321, UCF322,UCF324, UCF326, UCF328
