KOYO Japan NTN inch size tapered roller bearings 4T-4370/4320 44.45*88.5*40.386mm roller bearing for Auto gearbox

Wuxi Guangqiang Bearing Trade Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap KOYO Japan NTN inch size tapered roller bearings 4T-4370/4320 44.45*88.5*40.386mm roller bearing for Auto gearbox from wholesalers

    Buy cheap KOYO Japan NTN inch size tapered roller bearings 4T-4370/4320 44.45*88.5*40.386mm roller bearing for Auto gearbox from wholesalers
    • Buy cheap KOYO Japan NTN inch size tapered roller bearings 4T-4370/4320 44.45*88.5*40.386mm roller bearing for Auto gearbox from wholesalers

    KOYO Japan NTN inch size tapered roller bearings 4T-4370/4320 44.45*88.5*40.386mm roller bearing for Auto gearbox

    Ask Lasest Price
    Brand Name : KOYO
    Model Number : 4T-4370/4320
    Certification : ISO9001:2008
    Price : 1 USD
    Payment Terms : T/T, Western Union
    Supply Ability : 10000PCS/Month
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

    KOYO Japan NTN inch size tapered roller bearings 4T-4370/4320 44.45*88.5*40.386mm roller bearing for Auto gearbox

    KOYO Japan NTN inch size tapered roller bearings 4T-4370/4320 44.45*88.5*40.386mm roller bearing for Auto gearbox


    The Brief Introduction of NTN Tapered Roller Bearing:

    NTN Taper roller bearing 4T-4370/4320 are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.

    NTN Taper roller bearing 4T-4370/4320 are designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer. The capacity of axial load carrying depends on the contact angle of outer ring’s raceway. The bigger the contact angle is, the greater the capacity will be.

    NTN Taper Roller Bearing 4T-4370/4320 Advantage:

    1: Suitable for the radial and axial loaded.
    2: With low wear rate and long life service.
    3: Can be used over a large temperature range.
    4: Allows maintenance free and long life operation.
    5: Suitable for dirty corrosion impact load and edge loading.
    6: The base material provided a good shock absorbing capacity.
    7: With low and smoothly coefficient of friction and without stick slip effects

    Notes:

    4T means NTN 4-top tapered roller bearings, case hardened material,

    ET means NTN endurance tapered roller bearings, case hardened material.

    X means different bore, outer diameter, width or radius from basic part number

    U means ISO series, internationally interchangeable through hardened steel


    Tapered roller bearings 4T-4370/4320

    Bearing number : 4T-4370/4320

    Size (mm) : 44.45x88.5x40.386

    Brand : NTN

    Bore Diameter (mm) : 44,45

    Outer Diameter (mm) : 88,5

    Width (mm) : 40,386

    Bearing dimensions and specification in brand catalogue :

    d - 44,45 mm

    D - 88,5 mm

    T - 40,386 mm

    B - 40,386 mm

    C - 33,338 mm

    Weight - 1,12 Kg


    Tapered Roller Bearing Details:

    KOYO Japan NTN inch size tapered roller bearings 4T-4370/4320 44.45*88.5*40.386mm roller bearing for Auto gearbox


    Parameter List for the Other Tapered Roller Bearing Models:


    DesignationPrincipal dimensionsBasic load ratingsSpeed ratings
    -dynamicstaticReference speedLimiting speed
    -dDTCC0
    -mmkNr/min
    30302J2154214,2522,4201300018000
    30203J2174013,251918,61300018000
    30303J2174715,2528,1251200016000
    32303J2/Q174720,2534,733,51100016000
    32004X/Q20421524,2271200016000
    30204J2/Q204715,2527,5281100015000
    30304J2/Q205216,2534,132,51100014000
    32304J2/Q205222,254445,51000014000
    320/22X22441525,1291100015000
    32005X/Q2547152732,51100014000
    30205J2/Q255216,2530,833,51000013000
    32205BJ2/Q255219,2535,844950013000
    33205/Q25522247,3561000013000
    30305J2/Q256218,2544,643900012000
    31305J2256218,253840750011000
    32305J2256225,2560,563800012000
    320/28X/Q28521631,9381000013000
    302/28J2285817,253841,5900012000
    322/28BJ2/Q285820,2541,850850012000
    32006X/Q30551735,844900012000
    30206J2/Q306217,2540,244850011000
    32206BJ2/QCL7CVA606306221,2549,558,5800011000
    32206J2/Q306221,2550,157850011000
    33206/Q30622564,476,5750011000
    30306J2/Q307220,7556,156750010000
    31306J2/Q307220,7547,35067009500
    32306J2/Q307228,7576,585700010000
    JL26749F/710325314,52735,5900012000
    320/32X/Q32581736,946,5850011000
    32007J2/Q35621837,449800011000
    32007X/Q35621842,954850011000
    30207J2/Q357218,2551,25670009500
    32207J2/Q357224,25667870009500
    33207/Q35722884,210663009500
    30307J2/Q358022,7572,173,567009000
    31307J2/Q358022,7561,66760008500
    32307BJ2/Q358032,7593,511460008500
    32307J2/Q358032,7595,210663009000
    32307/37BJ2/Q378032,7593,511460008500
    JL69345F/310/Q38631736,952750011000
    JL69349A/310/Q38631736,952750011000
    JL69349X/310/Q38631736,952750011000
    JL69349/310/Q38631736,952750011000
    32008/38X/Q38681952,87170009500
    3490/3420/QCL7CVQ49238,17937529,3791,311067009500
    32008X/Q40681952,87170009500

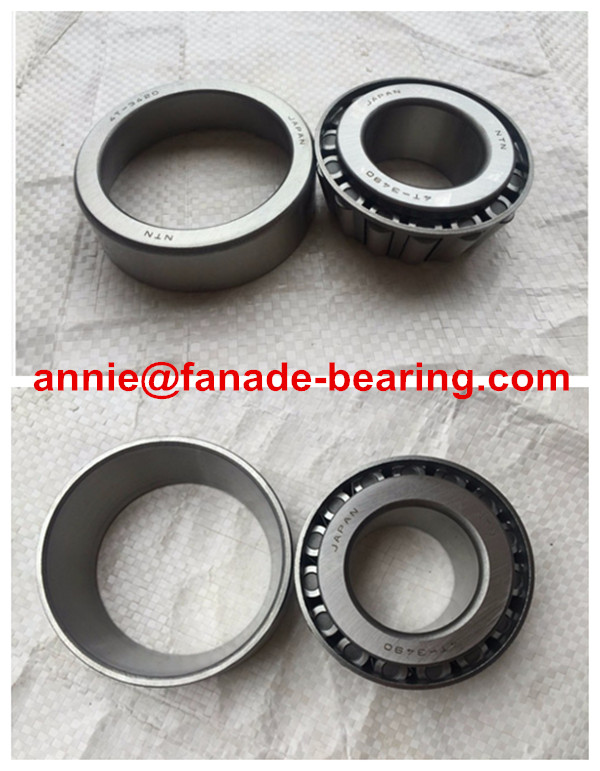

    Pictures Shows of NTNTapered Roller Bearings:



    Bearings Package of Tapered Roller Bearing :

    Original Package:

    1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);

    2):Small sizes:Plastic Tube + Carton

    3):Big sizes:Wooden Case
