    Auto Tapered Roller Bearing 32204 KOYO Japan 20x47x18mm 32204 JR NSK NACHI

    Ask Lasest Price
    Brand Name : KOYO
    Model Number : 32204 JR
    Certification : ISO9001:2008
    Price : 1 USD
    Payment Terms : T/T, Western Union
    Supply Ability : 10000PCS/Month
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

    Auto Tapered Roller Bearing 32204 KOYO Japan 20x47x18mm 32204 JR NSK NACHI

    Tapered roller bearing 32204 bearing KOYO Japan 20x47x18mm bearing 32204 JR NSK NACHI auto bearing

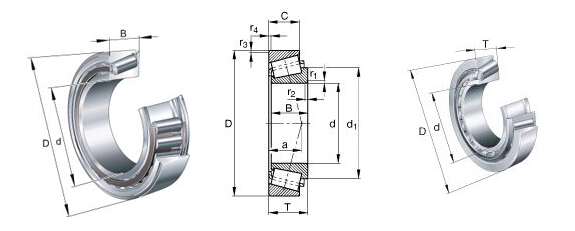

    Taper Roller Bearing 32204 Specifications
    Designation32204
    Principle dimensions(d)20mm
    Principle dimensions(D)47mm
    Principle dimensions(T)19.25mm
    Basic load ratings(dyn.)37kN
    Basic load ratings(stat.)40kN
    Limiting speed(grease lubrication)8000r/min
    Limiting speed(oil lubrication)11000r/min
    Weight0.163kg

    Series

    32204

    Cone Part Number

    X32204

    Cup Part Number

    Y32204

    Design Units

    Metric

    Bearing Weight

    0.2 Kg0.4 lb

    Cage Type

    Stamped Steel

    Dimensions

    Abutment and Fillet Dimensions

    R - Cone Backface "To Clear" Radius1

    1.020 mm0.040 in

    r - Cup Backface "To Clear" Radius2

    1.02 mm0.040 in

    da - Cone Frontface Backing Diameter

    26.42 mm1.04 in

    db - Cone Backface Backing Diameter

    28.45 mm1.12 in

    Da - Cup Frontface Backing Diameter

    43.94 mm1.73 in

    Db - Cup Backface Backing Diameter

    40.39 mm1.59 in

    Ab - Cage-Cone Frontface Clearance

    2.5 mm0.1 in

    Aa - Cage-Cone Backface Clearance

    0 mm0 in

    a - Effective Center Location3

    -6.60 mm-0.26 in

    Basic Load Ratings

    C90 - Dynamic Radial Rating (90 million revolutions)4

    12800 N2880 lbf

    C1 - Dynamic Radial Rating (1 million revolutions)5

    49500 N11100 lbf

    C0 - Static Radial Rating

    43000 N9660 lbf

    Ca90 - Dynamic Thrust Rating (90 million revolutions)6

    7280 N1640 lbf

    Factors

    K - Factor7

    1.76

    e - ISO Factor8

    0.33

    Y - ISO Factor9

    1.81

    G1 - Heat Generation Factor (Roller-Raceway)

    8.2

    G2 - Heat Generation Factor (Rib-Roller End)

    6.5

    Cg - Geometry Factor

    0.0493




    Other model numbers of tapered roller bearings


    model

    weight

    31314

    1.1

    31315

    1.2

    32005

    0.3

    32008

    0.1

    32012

    1

    32020

    2

    32030

    3.2

    32305

    0.56

    32206

    1

    32207

    1.2

    32305

    3.56

    32310

    3.56

    32309

    2

    32308

    8

    32307

    3

    32306

    2

    32304

    1

    32305

    1.12

    33111

    2.33

    33112

    0.496

    33113

    0.572
