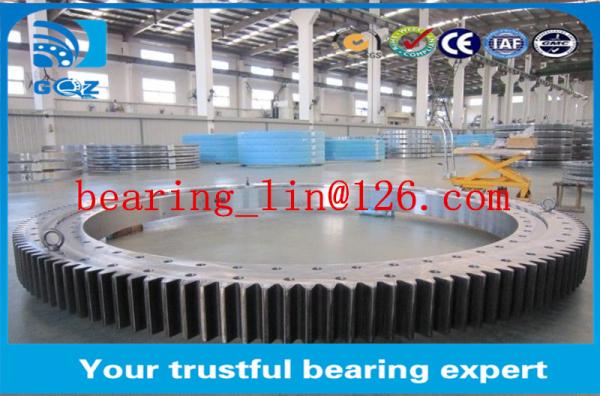

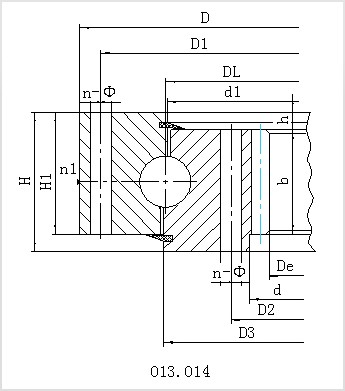

4 Point Contact Thin Section Bearing Small slewing bearing 013.25.315 Internal Gear DL

Slewing bearings are large-sized bearings with compositive large loads carrying capability, which can accommodate axial load radial load and tilting torque simultaneously.These bearings normally have mounting holes,inside gears or outside gears lubricatiing holes and sealing installations.

Features of small slewing bearing

♥compact configuration

♥light weight

♥good rigidity

♥smoothly running

♥high precison

♥reliable safety

Applications of the bearings are found in the industries such as engineering/project metallurgy,mining,oil,

chemistry,light industry,aviation,harbor/quay,vessels,military industry,instruments and meters etc.

Specifications for small slewing bearing

Slewing rings can be divided into

1.four point contact ball slewing bearings

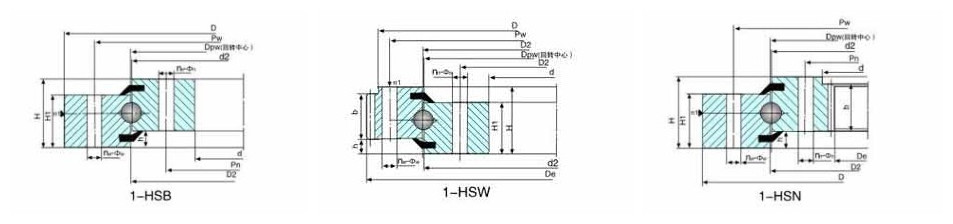

single-row four point contact slewing bearing:01 series,HS series,Q series

Single-row four point contact slewing bearings have two rings with compact configuration and light weight.The steel balls have four point contacts with the are raceways,which made the bearings accept at the same time the axial load,radial load and also tilting torque.Applications of these bearings may be found in slewing conveyors,welding machines,medium-and-samll sized lifting machines and excavators and other engineering machinery

1-HSB800,1-HSB820,1-HSB844,1-HSB855,1-HSB01,1-HSB900,1-HSB944,1-HSB955,1-HSB980,1-HSB1000,1-HSB1020,1-HSB1055,1-HSB1094,1-HSB1120,1-HSB1225,1-HSB1250, 1-HSB1400,1-HSW755,1-HSW800,1-HSW820,1-HSW820A,1-HSW844,1-HSW855,1-HSW900,1-HSW944,1-HSW955,1-HSW980,1-HSW1000,1-HSW1020,1-HSW1020A,1-HSW1055,1-HSW1094,1-HSW1120,1-HSW1220,1-HSW1220A,1-HSW1250,1-HSW1250A, 1-HSW1270,1-HSW1400,1-HSN755,1-HSN800,1-HSN820,1-HSN820A,1-HSN844,1-HSN855,1-HSN897,1-HSN900,1-HSN944,1-HSN955,1-HSN1000,1-HSN1020,1-HSN1020A,1-HSN1055,1-HSN1094,1-HSN1120,1-HSN1220,1-HSN1220A,1-HSN1250,1-HSN1250A,1-HSN1400,

2.crossed roller slewing bearing

single-row crossed roller slewing bearing:11 series,HJ series

Single-row cross roller slewing bearings have two rings with compact configuation and light weight.They are featured by high manufacturing precision and small assembly clearance,which requires precise mounting accuracy.The rollers are cross arranged at 1:1 alternatively,and they can accept axal force,tilting torque and comparatively big axial force at the same time.These bearings are extensively used in lifting,transportation,

engineerng machines and military industrial products.

1-HJB844,1-HJB880,1-HJB900,1-HJB944,1-HJB980,1-HJB1000,1-HJB1020,1-HJB1094,1-HJB1120,1-HJB1220,1-HJB1250,1-HJB1360,1-HJB1400,1-HJB1435,1-HJB1540,1-HJB1600,1-HJB1700,1-HJB1800,1-HJW844,1-HJW879,1-HJW879A,1-HJW900,1-HJW944,1-HJW995,1-HJW1000,1-HJW1019,1-HJW1019A,1-HJW1094,1-HJW1120,1-HJW1219,1-HJW1219A,1-HJW1250,1-HJW1400,1-HJW1434,1-HJW1434A,1-HJW1539,1-HJW1539A,1-HJW1600,HJW1680X,HJW1680S,1-HJW1699,1-HJW1699A,1-HJW11800,1-HJN844,1-HJN865,1-HJN880,1-HJN880A,1-HJN900,1-HJN944,1-HJN1000,1-HJN1020,1-HJN1020A,1-HJN1094,1-HJN1100,1-HJN1120,1-HJN1220,1-HJN1220A,1-HJN1250,1-HJN1400,1-HJN1435,1-HJN1435A,1-HJN1540,1-HJN1540A,1-HJN1600, 1-HJN1700, 1-HJN1700A, 1-HJN1800,

Packing

1. For small ones:anti-rust oil+vacuum plastic bag+paper box+wooden box

2. For big ones:anti-rust oil+waterproof belt+professional belt+wooden box

3. As your demands

Payment Terms

L/C ,T/T ,Western Union,Paypal, MoneyGram

1. 30% deposit By T/T, Western Union, Paypal, 70% before delivery.

2. 100% L/C at sight

Our service about slewing bearing

1.high precision low friction

2.factory price oem service

3.short delivery time

4.large stock is available

5.samples are offered

6.many brands can be chose and oem service

7.various payment terms(L/C,T/T,WU,MoneyGram,Paypal)

8.find the perfect transportation ways for you(small order,UPS/DHL/FEDEX and so on)

9.provide industrial packaging,commercial packing or as your requirement.

10.we are bearing manufacturers,provide you with all kinds of ball and roller bearings

We currently have 280.pcs of CSXU090-2RS Four Point Contact Thin Section Ball

Bearing In Stock.If you are interested,just feel free to contact us by E-mail or Phone.

We'll assure you the best quality; the most competitive prices & the shortest delivery time.

We also have Items given as below In Stock.For more details,just feel free to contact us.

Feature

Type : Thin section bearings CSXU ,Four point contact bearing, Type X, Sealed on both sides

Operating Temperatures : -25°C to +120°C
