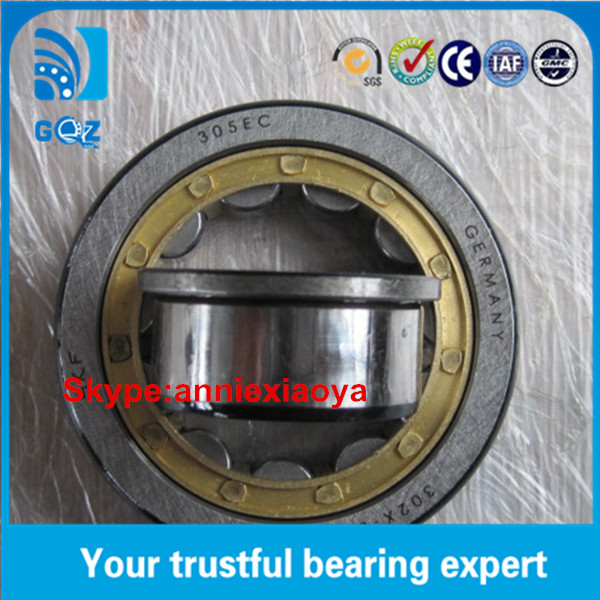

Cylindrical roller bearing Features:
1. Roller and groove for line contact or repairing referral
contact, radial load capacity, applicable to withstand
heavy load and impact load.
2. Small friction coefficient,suitable for high speed limits,to
deep groove ball bearings.
3. Installation error caused by the relative position of the shaft
and the shell, can make use of the supporting free.
4. For shaft or block hole machining the demand is higher,after
installation invading.this bearing relative to strict
control axis deflection,
5. Ring in separable,convenient in installation and removal.
6. Main purpose:Large motor
vehicles,motorcycles,spindle,internal-combustion
engine,generator,gas turbines and reducer,rolling mill,the
vibration
Model Number: NJ2310
Brand Name: NTN NSK KOYO FAG
Structure: Cylindrical
Type: roller
Bore Size: 50(mm)
Outside Diameter: 110(mm)
width: 40(mm)
Seals Type: Open
MaterialRing : Material Chrome Steel ,Carbon steel,Stainless steel
Cage material: Nylon ,steel , brass
Clearance: C0,C2,C3,C4,C5
Vibration: Zv1,Zv2 and Zv3
Precision Rating: P0,P6,P5
Greese: As you requirement, such as SRL ,PS2, Alvania R12 and so on .
Number of Row: Single Row
Guarantee: One year.
Application: Home appliances, low noise and high speed electric
motors,automotive components, pumps, machinery.
Certifications: ISO 9001:2008
Our technical parameters
Bearing No | Dimension(mm) | Mass |
| Bearing No | Dimension(mm) | Mass |
| d | D | B | kg |
|
| d | D | B | kg |
NU2008M | 40 | 68 | 18 | 0.3 |
| NU2048M | 240 | 360 | 72 | 52 |
NU2009M | 45 | 75 | 19 | 0.4 |
| NU2052M | 260 | 400 | 82 | 40 |
NU2010M | 50 | 80 | 19 | 0.4 |
| NU2056M | 280 | 420 | 82 | 42 |
NU2011M | 55 | 90 | 22 | 0.6 |
| NU2060M | 300 | 460 | 95 | 61 |
NU2012M | 60 | 95 | 22 | 0.6 |
| NU2064M | 320 | 480 | 95 | 64 |
NU2013M | 65 | 100 | 22 | 0.7 |
| NU2068M | 340 | 520 | 106 | 86 |
NU2014M | 70 | 110 | 24 | 0.9 |
| NU2072M | 360 | 540 | 106 | 90 |
NU2015M | 75 | 115 | 24 | 0.9 |
| NU2076M | 380 | 560 | 106 | 96 |
NU2016M | 80 | 125 | 27 | 1.3 |
| NU2080M | 400 | 600 | 118 | 125 |
NU2017M | 85 | 130 | 27 | 1.2 |
| NU2084M | 420 | 620 | 118 | 130 |
NU2018M | 90 | 140 | 30 | 1.8 |
| NU2088M | 440 | 650 | 122 | 145 |
NU2019M | 95 | 145 | 30 | 1.8 |
| NU2092M | 460 | 680 | 128 | 168 |
NU2020M | 100 | 150 | 30 | 1.9 |
| NU2096M | 480 | 700 | 128 | 173 |
