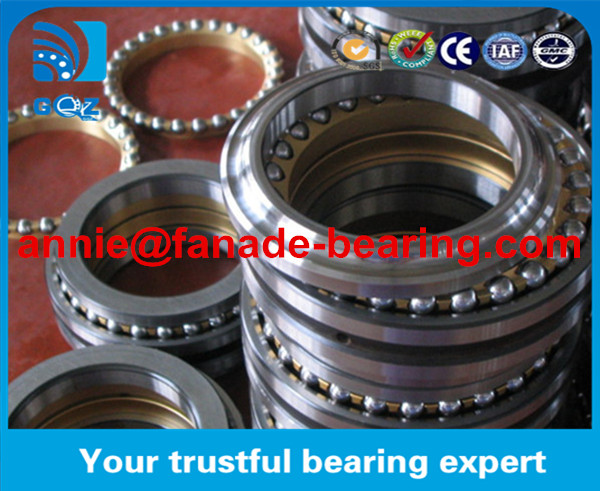

NSK Axial angular contact ball bearings 160TAC20D+L CNC Spindle
160x240x96 mm Angular Contact Bearings 160TAC20D+L
Double direction angular contact thrust ball bearing are specially
designed high precision bearings for the main spindles of machine
tools.

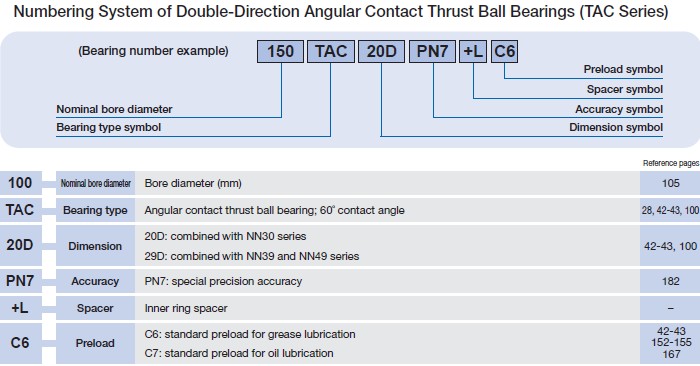

NSK Axial angular contact ball bearings 160TAC20D+L CNC Spindle
numbering system .
NSK bearing 160TAC20D+L bearings for motor spindle design :
NSK bearing 160TAC20D+L bearings for motor spindle Specification :
| Commodity name | NSK double-direction Angular contact ball bearing |
| Bearing model | 160TAC20D+L |
| Bearing specification | 160*240*96 mm bearing |
| Weight /KG | 13 KG |
| Bearing Series | TAC series |
| Ring Materical | Chrome Steel |
| Quality standard | ISO9001:2008 |
| Bearing Precision | P5 ,P4 |
| Cage | Brass |
| Service | OEM service offer |
Axial angular contact ball bearings 160TAC20D+L
Bearing number : 160TAC20D+L
Size (mm) : 160x240x96
Brand : NSK
Bore Diameter (mm) : 160
Outer Diameter (mm) : 240
Width (mm) : 96
Bearing dimensions and specification in brand catalogue :
d - 160 mm
D - 240 mm
T - 96 mm
C - 48 mm
Angle (α) - 60 °
r min. - 2,1 mm
r1 min. - 1,1 mm
Da - 228 mm
ra max. - 2 mm
rb max. - 1 mm
da - 191 mm
Weight - 13 Kg
Basic dynamic load rating (C) - 185 kN
Basic static load rating (C0) - 680 kN
(Grease) Lubrication Speed - 2 300 r/min
(Oil) Lubrication Speed - 2 500 r/min
NSK Axial angular contact ball bearings 160TAC20D+L CNC Spindleotor
spindle model series :
NSK HIGH PRECISION angular contact ball bearing series :
15TAC47BSUC10PN7B,17TAC47BSUC10PN7B,20TAC47BSUC10PN7B,25TAC62BSUC10PN7B,30TAC62BSUC10PN7B
30TAC72BSUC10PN7B,35TAC72BSUC10PN7B,40TAC72BSUC10PN7B,40TAC90BSUC10PN7B,45TAC75BSUC10PN7B
45TAC100BSUC10PN7B,50TAC100BSUC10PN7B,50TAC120BSUC10PN7B,60TAC120BSUC10PN7B,55TAC100BSUC10PN7B
| Model No. | d(mm) | D(mm) | T(mm) | C(mm) | Weight(kg) |
| 35TAC20X+L | 35 | 62 | 34 | 17 | 0.358 |
| 40TAC20X+L | 40 | 68 | 36 | 18 | 0.435 |
| 45TAC20X+L | 45 | 75 | 38 | 19 | 0.549 |
| 50TAC20X+L | 50 | 80 | 38 | 19 | 0.59 |
| 55TAC20X+L | 55 | 90 | 44 | 22 | 0.898 |
| 60TAC20X+L | 60 | 95 | 44 | 22 | 0.963 |
| 65TAC20X+L | 65 | 100 | 44 | 22 | 1.03 |
| 70TAC20X+L | 70 | 110 | 48 | 24 | 1.41 |
| 75TAC20X+L | 75 | 115 | 48 | 24 | 1.49 |
| 80TAC20X+L | 80 | 125 | 54 | 27 | 2.02 |
| 85TAC20X+L | 85 | 130 | 54 | 27 | 2.12 |
| 90TAC20X+L | 90 | 140 | 60 | 30 | 2.83 |
| 95TAC20X+L | 95 | 145 | 60 | 30 | 2.93 |
| 100TAC29X+L | 100 | 140 | 48 | 24 | 1.87 |
| 100TAC20X+L | 100 | 150 | 60 | 30 | 3.08 |
| 105TAC29X+L | 105 | 145 | 48 | 24 | 1.96 |
| 105TAC20X+L | 105 | 160 | 66 | 33 | 3.94 |
| 110TAC29X+L | 110 | 150 | 48 | 24 | 2.04 |
