Features :
1)Optimum design:
NSK high speed precision motorized spindle bearing 45BNR10S optimum
design achieved by computer simulation of temperature rise
resulting from ball skid.
2) Long life :
Enhanced service life measures include raising the seizure limit
under low lubrication and high speed operation conditions.
3) High accuacy
Highly accurate P2 series is available.
NSK’S experence and know-how ensure bearing specifications with a high
degree of accuracy.
4) High speed
Benefits of the light weights,high strength engineered resin cage
include heat resistance and high rigidity ,making this cage
indispensable for high-speed applications .
5) Low noise
NSK high speed precision motorized spindle bearing 45BNR10S Eliminates noise caused by compressed air of the oil-air
lubrication system .

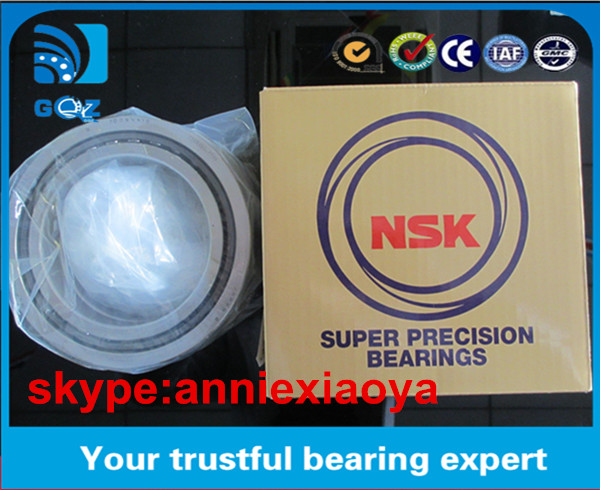

NSK NSK motorized spindle bearing 45BNR10S 45BNR10STYNDBBELP4
definition
angular contact ball bearings in a tandem arrangement are used when the actual thrust force
exceeds the thrust load capacity of a single angular contact ball
bearing , Single row angular contact ball bearings in tandem arrangement must
always be adjusted against another bearing inversely arranged for
shaft guidance in the opposite direction , Single row angular contact ball bearings in spindle bearing design must not be exposed to any misalignments
.
NSK high speed NSK motorized spindle bearing 45BNR10S
45BNR10STYNDBBELP4 Specification :
Angular contact ball bearings 45BNR10S
Bearing number : 45BNR10S 45BNR10STYNDBBELP4
Size (mm) :
Brand : NSK45x75x16
Bore Diameter (mm) : 45
Outer Diameter (mm) : 75
Width (mm) : 16
Bearing dimensions and specification in brand catalogue :
d - 45 mm
D - 75 mm
B - 16 mm
C - 16 mm
Angle (α) - 18 °
a - 17,6 mm
b - 1,7 mm
r min. - 1 mm
r1 min. - 0,6 mm
A - 55,5 mm
da min. - 51 mm
Da max. - 69 mm
ra max. - 1 mm
Weight - 0,259 Kg
Basic dynamic load rating (C) - 11,7 kN
Basic static load rating (C0) - 9 kN
(Grease) Lubrication Speed - 23400 r/min
(Oil) Lubrication Speed - 33400 r/min
NSK motorized spindle bearing 45BNR10S 45BNR10STYNDBBELP4 series numbering system .
